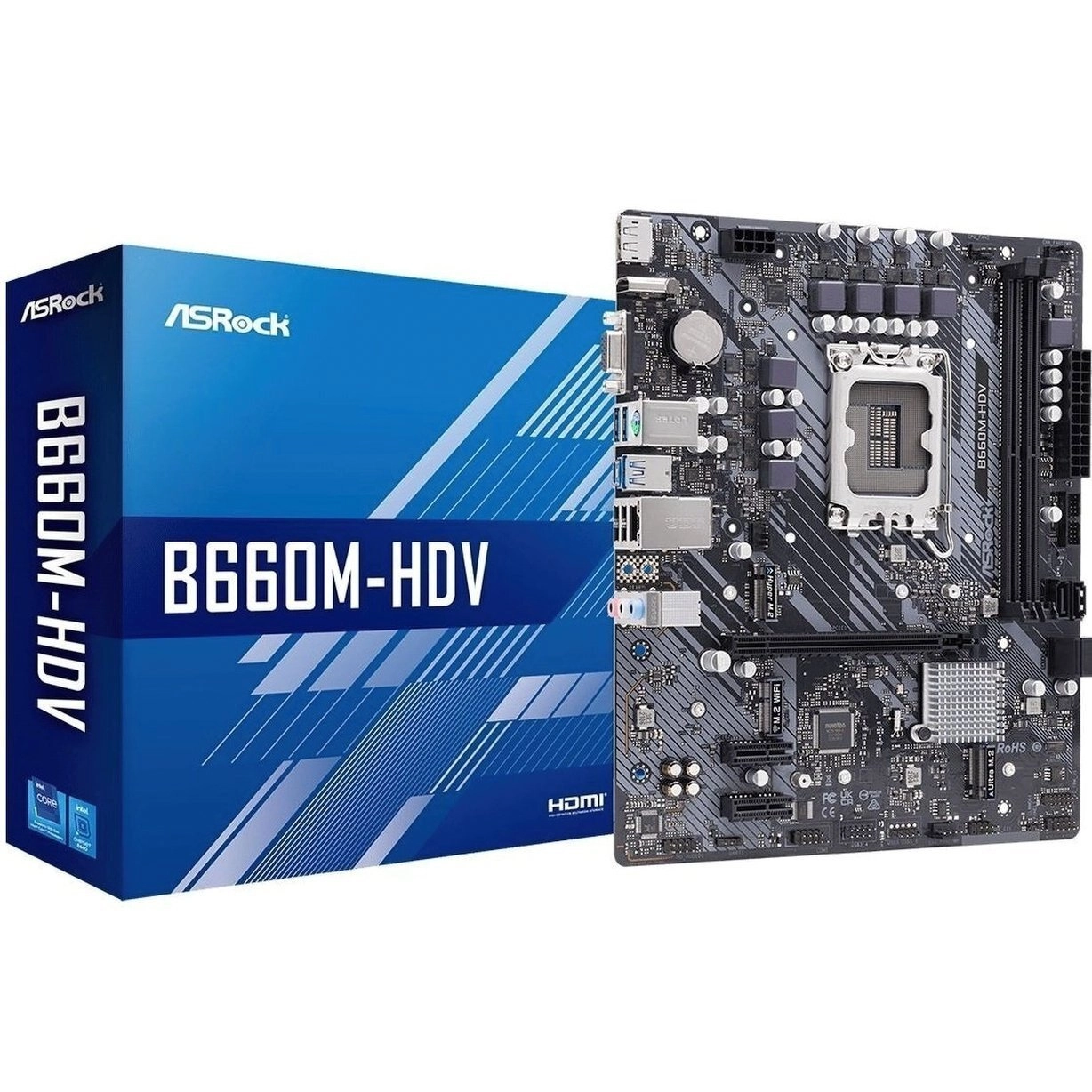

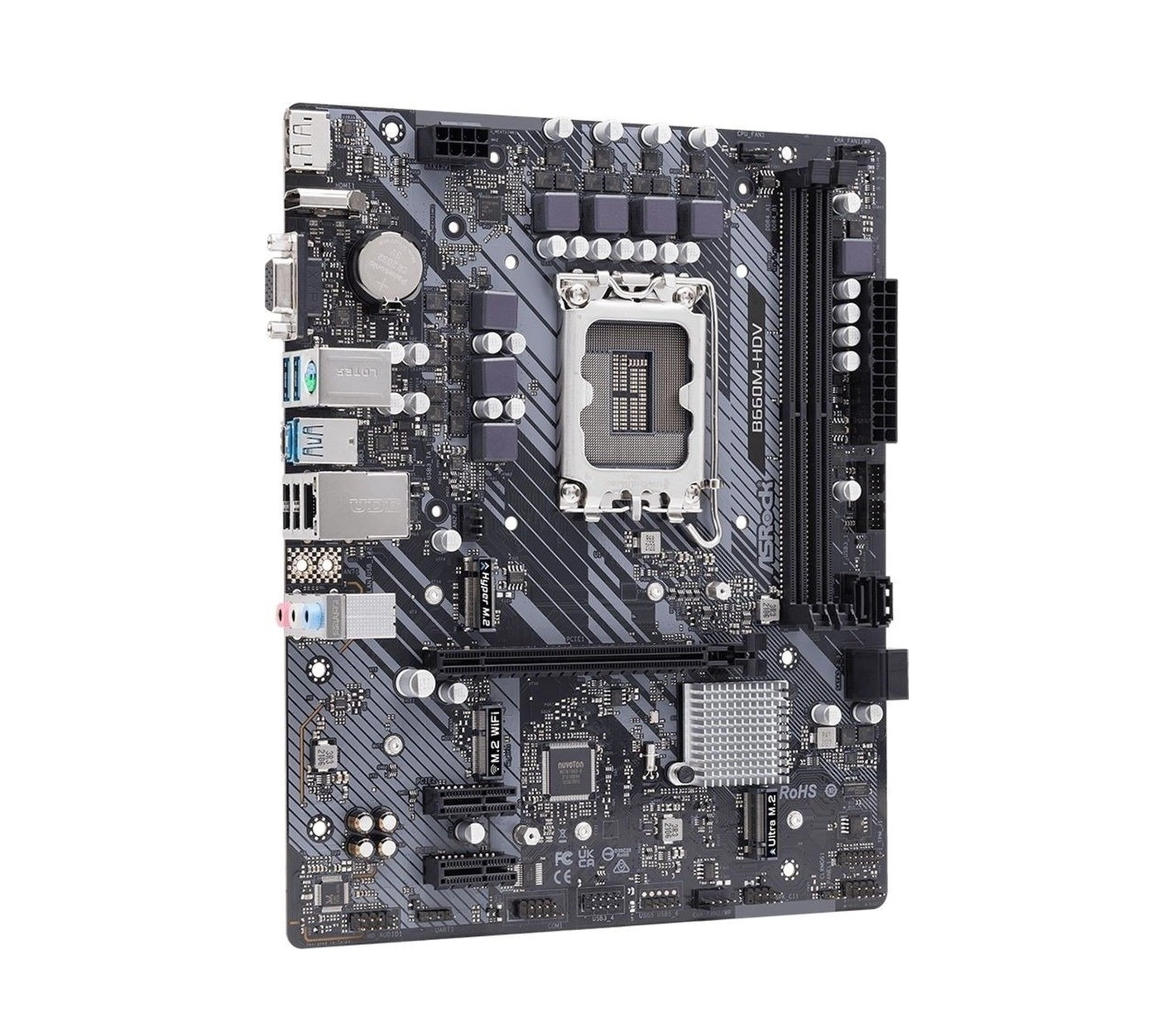

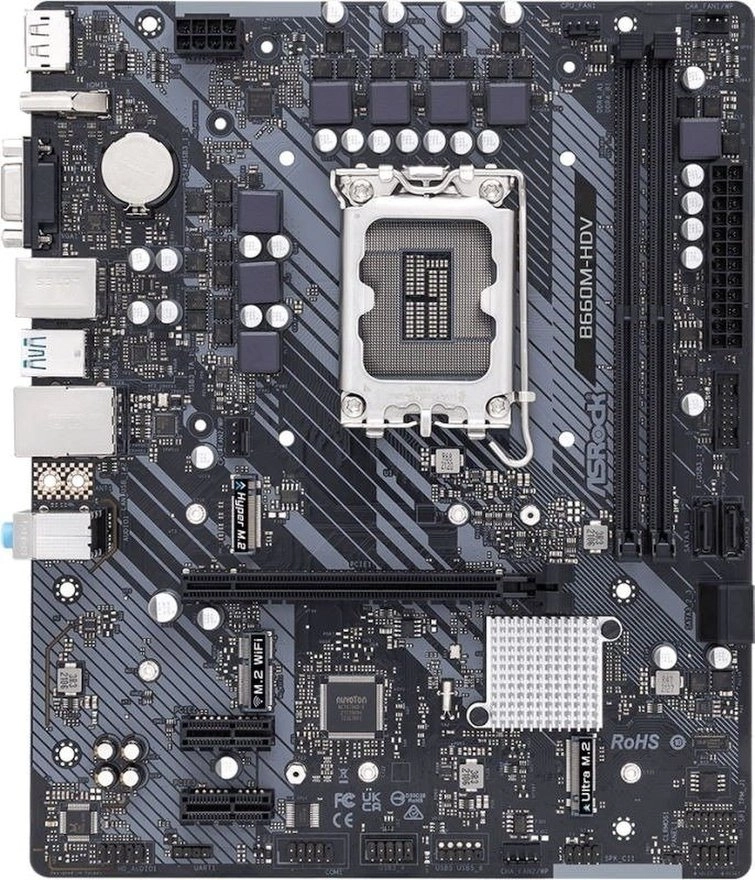

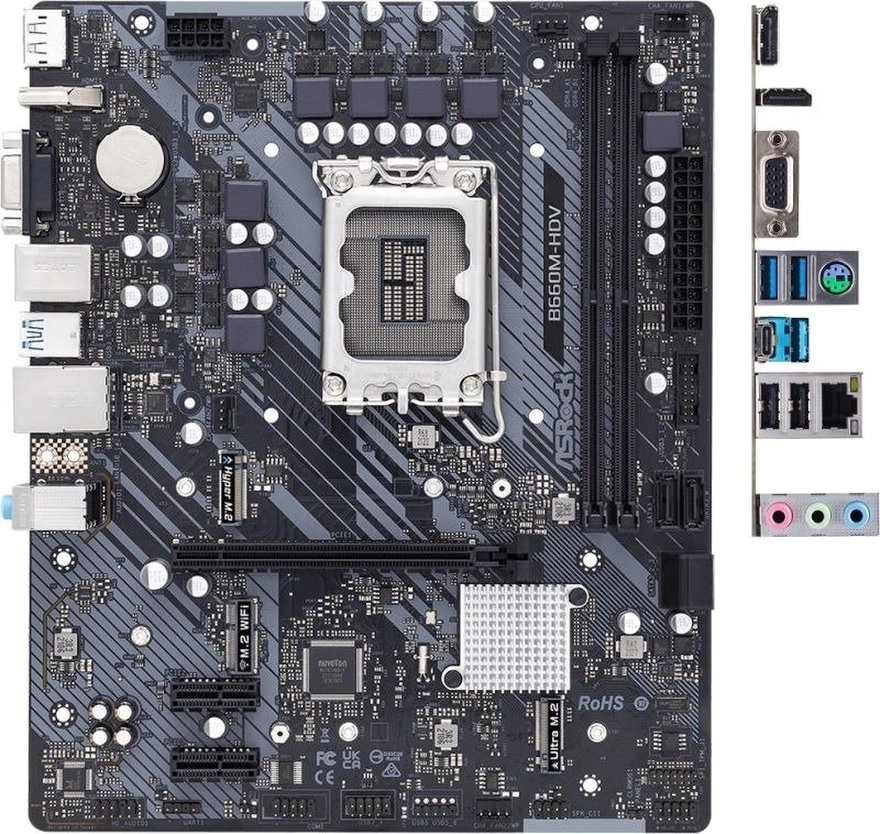

Ona kart ASRock B660M-HDV (B660M-HDV)

Asosiy xususiyatlari

Ish stoli kompyuterining maqsadi
Micro-ATX shakl faktori
Dizayn xususiyatlari Wi-Fi antenna o'rnatish
Kafolat, oy.    36
ASRock Full Spike Protection, Digi Power Texnologiyalari
Protsessor (socket turi) Intel LGA 1700
Protsessor (to-to socket) 1
DDR4 RAM (turi)
Operativ xotira (uyalar soni) 2
Operativ xotira (kanallarga) 2 kanalli
Intel B660 Chipseti
PCI Express uyasi (PCI-E x16 (x16)), dona 1 X PCI-E x16 (x16) v4.x
PCI Express uyasi (PCI-E x16 (x8)), dona yo'q
PCI Express uyasi (PCI-E x16 (x4)), dona yo'q
PCI Express uyasi (PCI-E x16 (x2)), dona yo'q
PCI Express uyasi (PCI-E x16 (x1)), dona yo'q
PCI Express uyasi (PCI-E x8), dona yo'q
PCI Express uyasi (PCI-E x4), dona yo'q
PCI Express uyasi (PCI-E x1), dona 2 X PCI-E x1 v3.x
PCI uyasi, dona yo'q
AGP uyasi yo'q

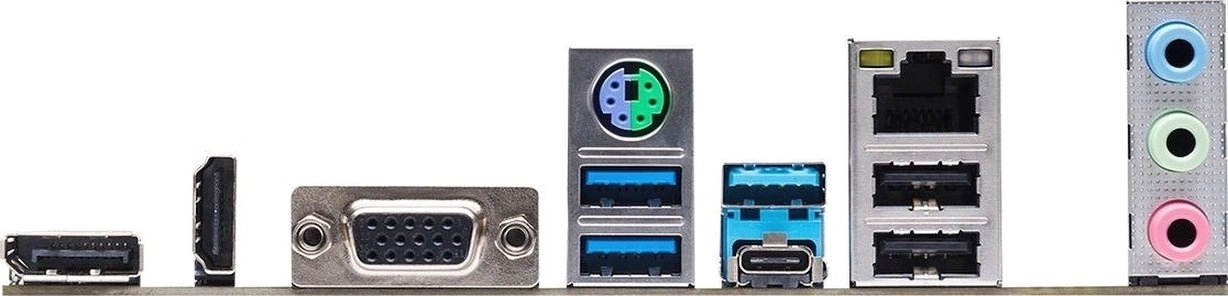

USB Type-C/ Thunderbolt 1 x USB 3.2 Type-C porti (gen 1 up to 5Gbps)
USB 3.1/3.2 gen 2 Type-A/Type-B/Type-C porti (up to 10Gbps) yo'q
USB port 3.0/3.1/3.2 Gen 1 Type-A / Type-b / micro USB (up to 5Gbps) 1 X USB 3.2 Gen 1 Type-A (bortda, old chiqish uchun), 3 X USB 3.2 Gen 1 Type-A
USB 2.0 Type-A/ Type-B/ mini USB/ micro USB port (up to 480mbps) 2 X USB 2.0 Type-A, 2 X USB 2.0 Type-A (bortda, old chiqish uchun)
VGA porti (D-Sub) 1 x VGA
DVI porti, dona yo'q
HDMI porti (mini/micro) 1 X HDMI
Thunderbolt Porti Yo'q
DisplayPort (mini/micro) 1 x DisplayPort
PS / 2 porti, 1 dona
Port COM (RS-232) 1 (taxtada, oldingi chiqish uchun)
Port (IEEE 1394) yo'q
LPT porti (IEEE 1284), dona yo'q
TPM moduli ulagichi, 1 dona (taxtada)
SATA3 portlariga (6 Gbit / s), 4 dona
Sata2 portlariga (3gbit/s), dona yo'q
SATA Express portlariga (10 Gbit/s gacha), dona yo'q
Mini PCI Express (Mini PCI-E, Socket 3), dona 1 x M. 2 (Key M), 1 X Ultra M. 2
RAID RAID 0, RAID 1, RAID 10, RAID 5 dasturlarini qo'llab-quvvatlash
ESATA porti yo'q
K-v eSATA, dona. yo'q
K-IDE portlari yo'q
FDD uyasi yo'q
Tarmoq ulanishi (LAN RJ-45), Mbit / s 10/100/1000 Ethernet
Tarmoq ulanishi (LAN RJ-45 ga) 1
Intel I219V LAN tekshiruvi modeli
Simsiz interfeyslar (Bluetooth/ NFC) yo'q
Realtek alc897 o'rnatilgan ovoz protsessori
Ko'p kanalli ovoz 7.1
3.5 mm raz'em (mini-Jack), 3 dona
Optik chiqish (s/PDIF) yo'q
Bir nechta grafik kartalarni qo'llab-quvvatlash yo'q
O'rnatilgan video yo'q
BIOS    AMI UEFI
Dualbios-Ni Qo'llab-Quvvatlash Yo'q
Shimoliy ko'prikni sovutish yo'q
Janubiy ko'prikni sovutish passiv (radiator)
Mahsulotning umumiy balandligi (H), mm 244
Mahsulotning umumiy kengligi (W), mm 201
Yoritilmagan elementlarni yoritish
Rangi Kulrang
Asosiy quvvat ulagichi 24+8-pin
Sovutgichlarning quvvat ulagichlariga (CPU Fan bilan jami), 2 dona
Sovutgichlarning quvvat ulagichlariga (CPU Fan), 1 dona
Paketdagi o'lchamlar (Vxshxg), sm 6x28x24
Paketdagi vazn, kg 0,86
